Featured
24 Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included)
24 Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included)
We might not be able to fulfill your order for the quantity requested
Available At...
Regional Distribution Warehouse
Low Stock, act fast!
Dimensions
Width: 23.38
Height: 17.75
Depth: 32
Color
Features
- 24" wide all-refrigerator - 3.1 cu.ft. interior for residential or commercial cold storage
- Less than 18" deep - Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
- ADA compliant design - 32" height allows easy installation under lower ADA compliant counters
- Adjustable height - Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
- Built-in capable - Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Stainless steel interior - Walls and floor are constructed from stainless steel for added strength and easy cleanup
- 23 5/16" W x 28 3/16" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
- Factory installed lock - Keyed lock for a secure interior (2 keys included)
- Frost-free operation - No-frost operation for minimum user maintenance
Product Description

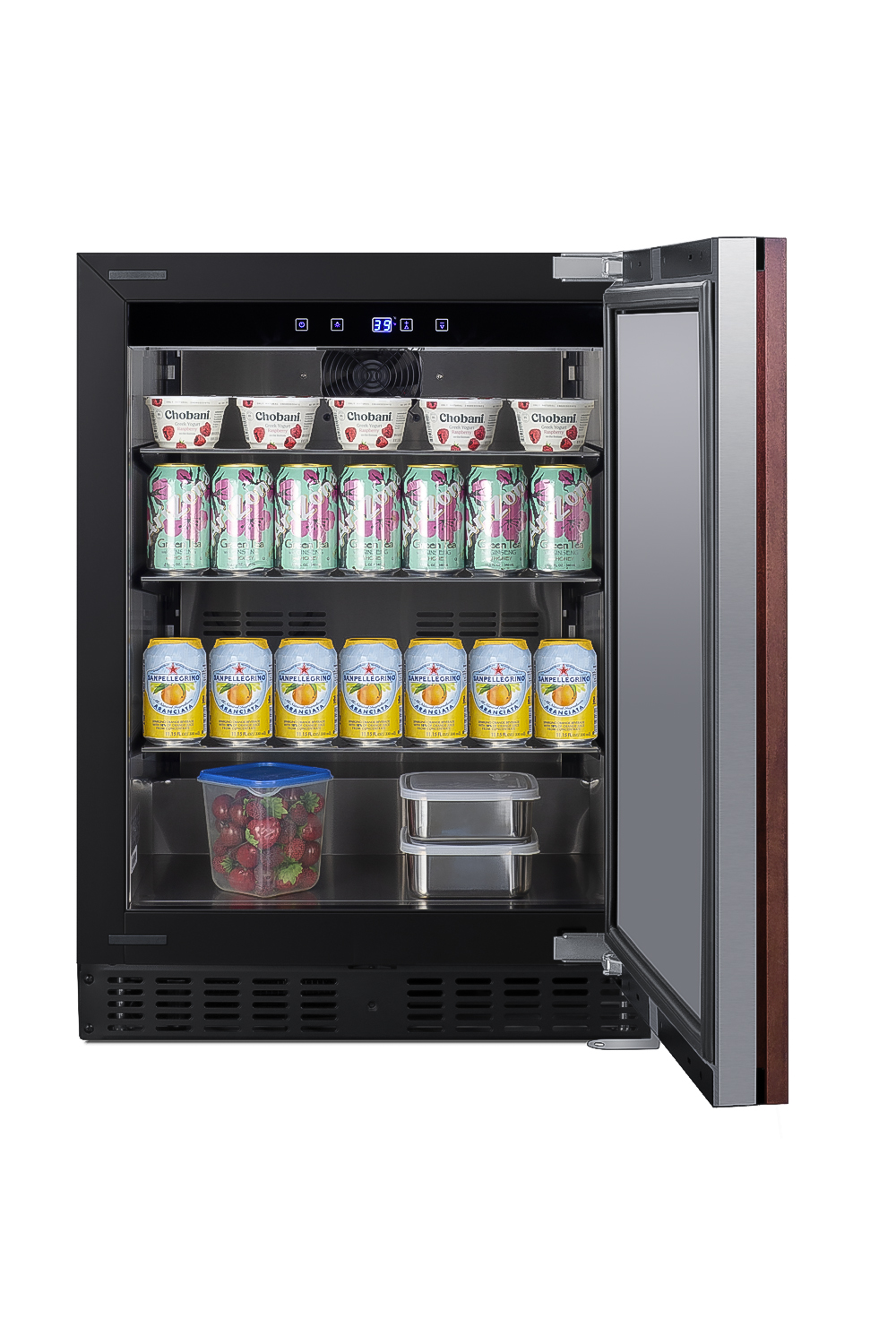

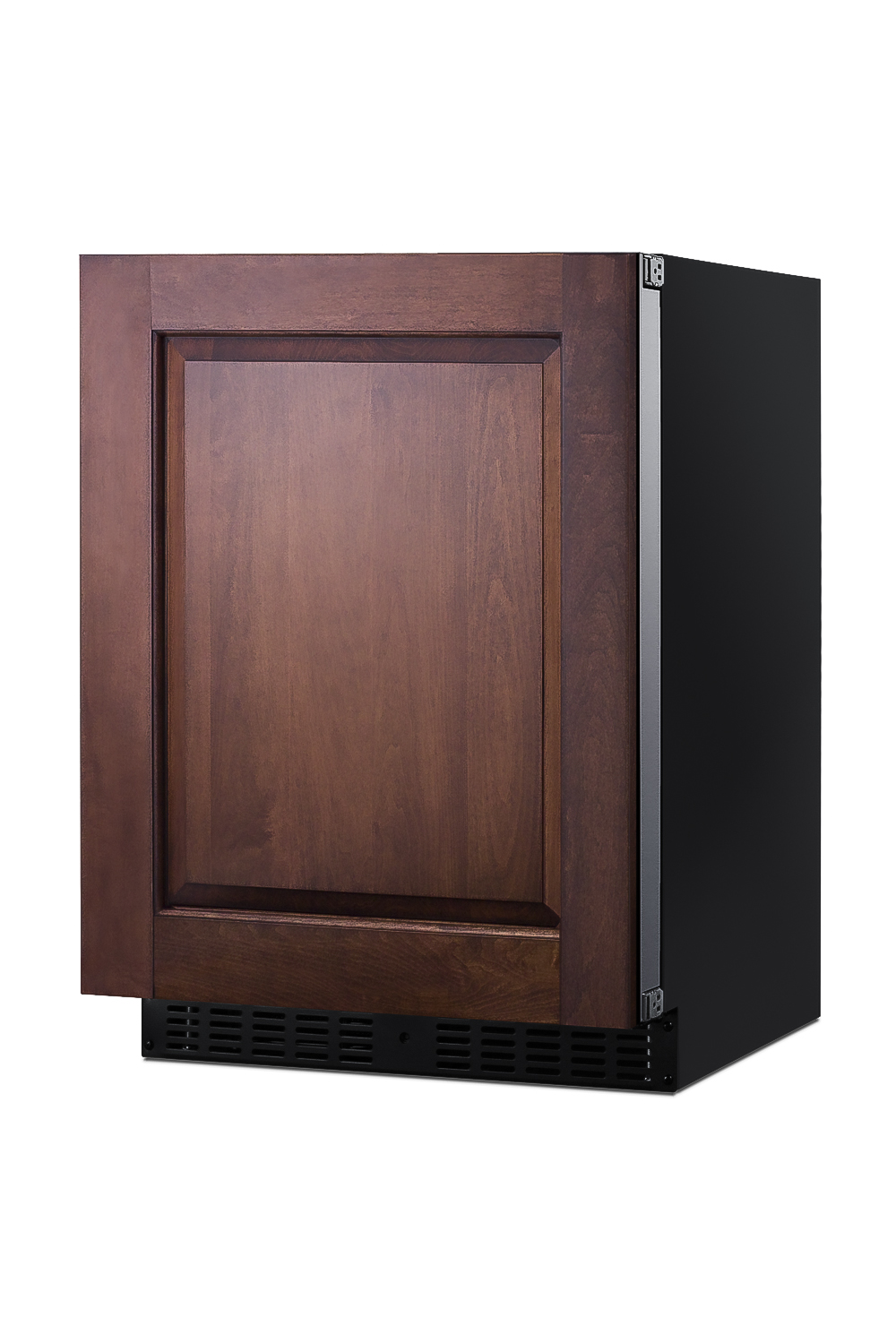

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.Model ASDS2413IF is a 24 wide all-refrigerator sized under 18 deep. It comes in a 32 height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34 to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The door features a European-style fully articulating hinge for smooth opening. This also allows the door to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28.38 H x 23.4 W; maximum weight: 10 lbs.). Note: this unit ships with a handle for optional use (not shown in image). Customers may also supply their own (as shown) to better match their existing cabinetry.Inside, the ASDS2413IF features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving in chrome for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.The ASDS2413IF refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18 deep choices are available in 15, 19, and 24 widths, including outdoor refrigerators, refrigerator
Specification
| General | |
| Nominal Height (in.) | 32 |
| Height of Cabinet (in.) | 32 |
| Height to Hinge Cap (in.) | 0 |
| Width with Door Open (in.) | 0 |
| Depth with Handle (in.) | 0 |
| Depth with door at 90° (in.) | 40 |
| Capacity | 3.1 |
| Bottles | 0 |
| Defrost Type | Frost-Free |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 215 |
| Other Energy Info | 0.0 |
| Amps | 1 |
| Gas Yearly Amount | 0 |
| Gas Therm Amount | 0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight (lbs.) | 89 |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
Documentation
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Disclosures
Proposition 65 Warning for California ResidentsFeatures
- 24" wide all-refrigerator - 3.1 cu.ft. interior for residential or commercial cold storage
- Less than 18" deep - Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
- ADA compliant design - 32" height allows easy installation under lower ADA compliant counters
- Adjustable height - Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
- Built-in capable - Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Stainless steel interior - Walls and floor are constructed from stainless steel for added strength and easy cleanup
- 23 5/16" W x 28 3/16" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
- Factory installed lock - Keyed lock for a secure interior (2 keys included)
- Frost-free operation - No-frost operation for minimum user maintenance
